2023 Can-Am Defender MAX X MR With Half Doors HD10

Liquid Titanium / Magma Red • New Utility Vehicles

MSRP

$27,599

Call Now!

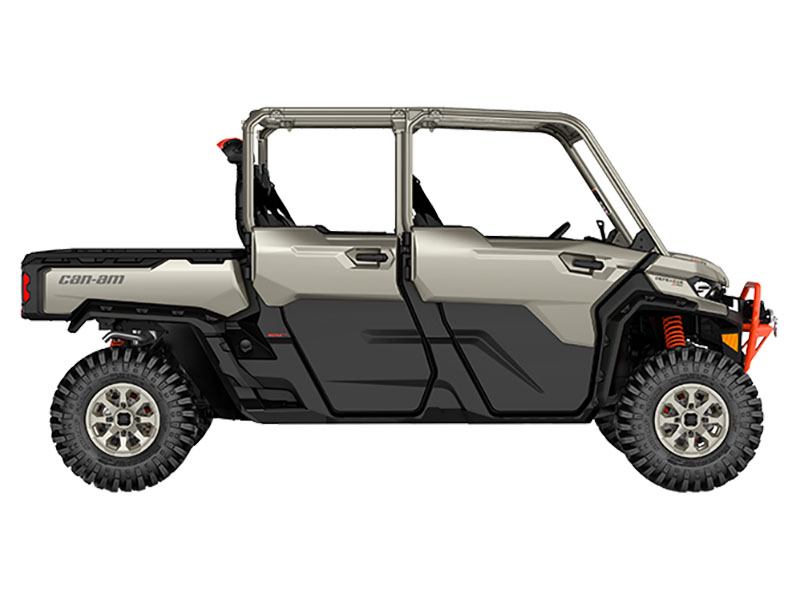

2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 1

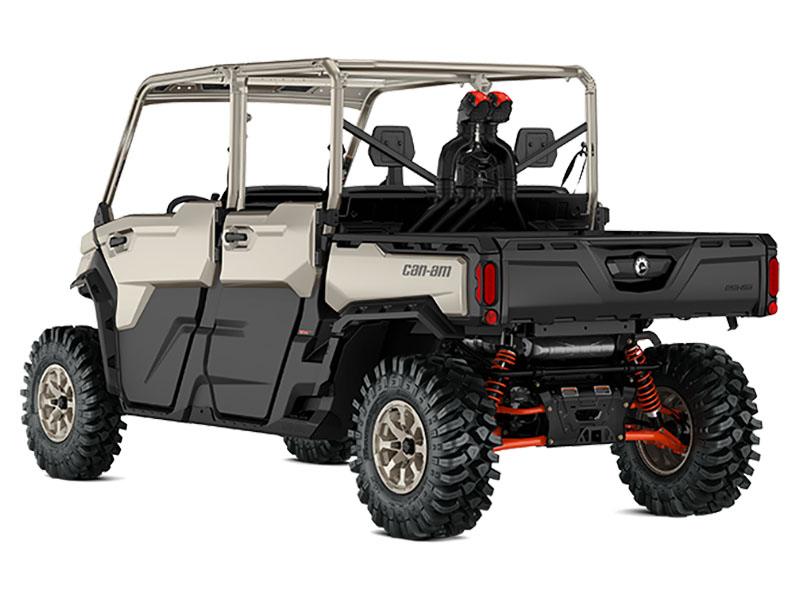

2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 2

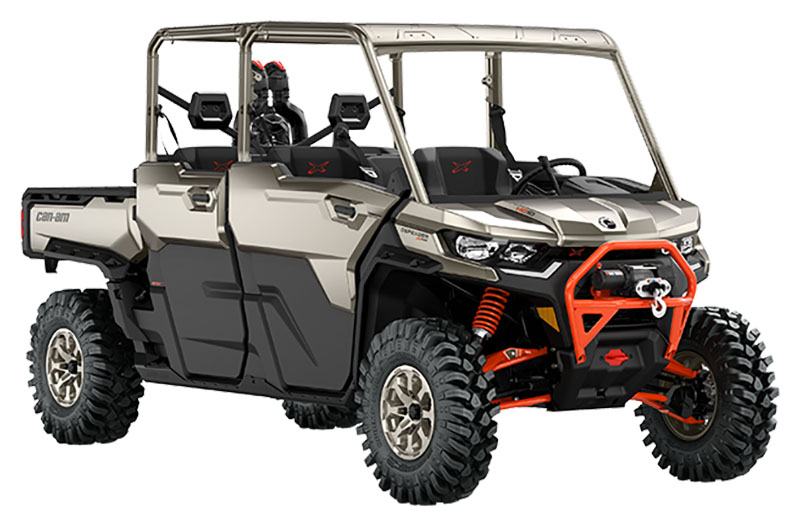

2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 3
Previous
Next
2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 1
2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 2
2023 Can-Am Defender MAX X MR With Half Doors HD10 in Columbia, Missouri - Photo 3
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Head Motor Company may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
CLOSE THE DOOR ON SURPRISES.
The ultimate mud workhorse you love, now with Premium Half Doors. Featuring 6 seats, a Rotax HD10 V-Twin engine, Smart-Lok™ differential, 15 in. ground clearance, a winch, and more.
Request More Information Print Brochure
Apply for Financing
Schedule a Test Ride Compare Models Insurance Quote

2023 Can-Am Defender MAX X MR With Half Doors HD10

Condition
New
Category
Utility Vehicles
Model Type
Defender Max
Model Code
8PPA
Color
Liquid Titanium / Magma Red

Interior Comfort

  • BENCH SEAT WITH BOLSTERS: We’re talking smooth - Comfort isn’t just about the driver's seat. It’s advanced comfort for all day group riding. Intuitive cockpit with optimized visibility and additional lateral support with reinforced seat skin make for effortless hopping in and out. Underside hooks, Flip-up seat and adjustable driver's seat? You got those too. Comfort is king.

Torque

  • TORQUE ON DEMAND: PRO-TORQ CVT transmission and on-the-fly 4WD - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential puts the power down on any terrain. The PRO-TORQ CVT on HD9 and HD10 models provides improved cooling and electronic belt protection for more durability.

General Information

Manufacturer
Can-Am
Model Year
2023
Model
Defender MAX X MR With Half Doors HD10
Model Code
8PPA
Color
Liquid Titanium / Magma Red

Brakes/Wheels/Tires

Brakes

Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers

Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers

Holding mechanism

Wheels
14 in. cast-aluminum
Tires

Front - XPS Swamp Force 30 x 9 x 14 in.

Rear - XPS Swamp Force 30 x 11 x 14 in.

Dimensions

Length
161.9 in. (411.2 cm)
Height
82 in. (208.3 cm)
Width
64 in.(162.6 cm)
Weight
Estimated Dry - 2,174 lb. (986 kg)
Ground Clearance
15 in. (38.1 cm)
Wheelbase
115.5 in. (294 cm)

Drivetrain

Transmission
PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust, Extra-L / H / N / R / P
Drive System
Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Drive
Electronic Hill Descent Control , ECO™ / ECO™ Off / Work modes

Electrical

Battery

12 V (30 amp/h)

Magneto - 650 W

Instrumentation

DC outlet (10 A), USB Port (10 A) x 2

Gauge - 7.6 in. (19.3 cm) wide digital display with keypad

Lighting
Front output 140 W, LED Signature, LED tail lights

Engine

Engine
Rotax® V-twin with strategically positioned engine air intake
Cooling
Liquid
Horsepower
82 hp
Displacement
976 cc
Bore x Stroke
69 lb. ft.
Fuel System
Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Fuel Capacity
10.6 gal. (40 l)

Operational

Frame
Chassis Cage - Profiled cage. ROPS approved
Front Suspension

Arched double A-arm with sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Rear Suspension

Arched TTA with external sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Steering

Dynamic Power Steering (DPS)

Wheel - Adjustable tilt steering

Seating

6 person capacity

VERSA-PRO bolster bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims

Other

Includes
Winch - Relocated 4,500 lb. (2,041 kg) with synthetic rope and roller fairlead
Cargo Box Length
38 in. (96.5 cm)
Cargo Box Height
12 in. (30.5 cm)
Cargo Box Width
54.5 in. (138.4 cm)
Cargo Box Capacity
1,000 lb. (454 kg)
Load Capacity

1,425 lb. (646 kg)

Tailgate - 250 lb. (113.4 kg)

Capacity
Storage Total - 16.9 gal. (63.9 l)
Towing Capacity
2,500 lb. (1,134 kg)
Hitch
2 in. receiver
Safety Features
Protection - Premium half doors Heavy-duty front steel bumper HMWPE full skid plate Aluminum rock sliders Mudguards
Warranty

Factory - 1-year BRP Limited

Extended Service Terms - B.E.S.T. term available up to 30 months
